Powerful. Accurate. Safe. Your all-in-one solution for metal crafting and part production.
Why Choose the HC280-700?
spindle bearings ensure spindle runout accuracy within 0.005mm – ideal for high-tolerance applications.
Large capacity, compact footprint
Swing over bed: 280mm, Max workpiece length: 700mm – powerful enough for serious work, compact enough for home workshops or labs.
Variable speed with 12-speed gear system
Dual-curve gear dial lets you adjust spindle speed from 80 to 1600 rpm, supporting roughing to fine finishing.
No gear changes needed for standard threading
Easily cut both metric and imperial threads using the control levers – no need to swap gears, saving setup time.

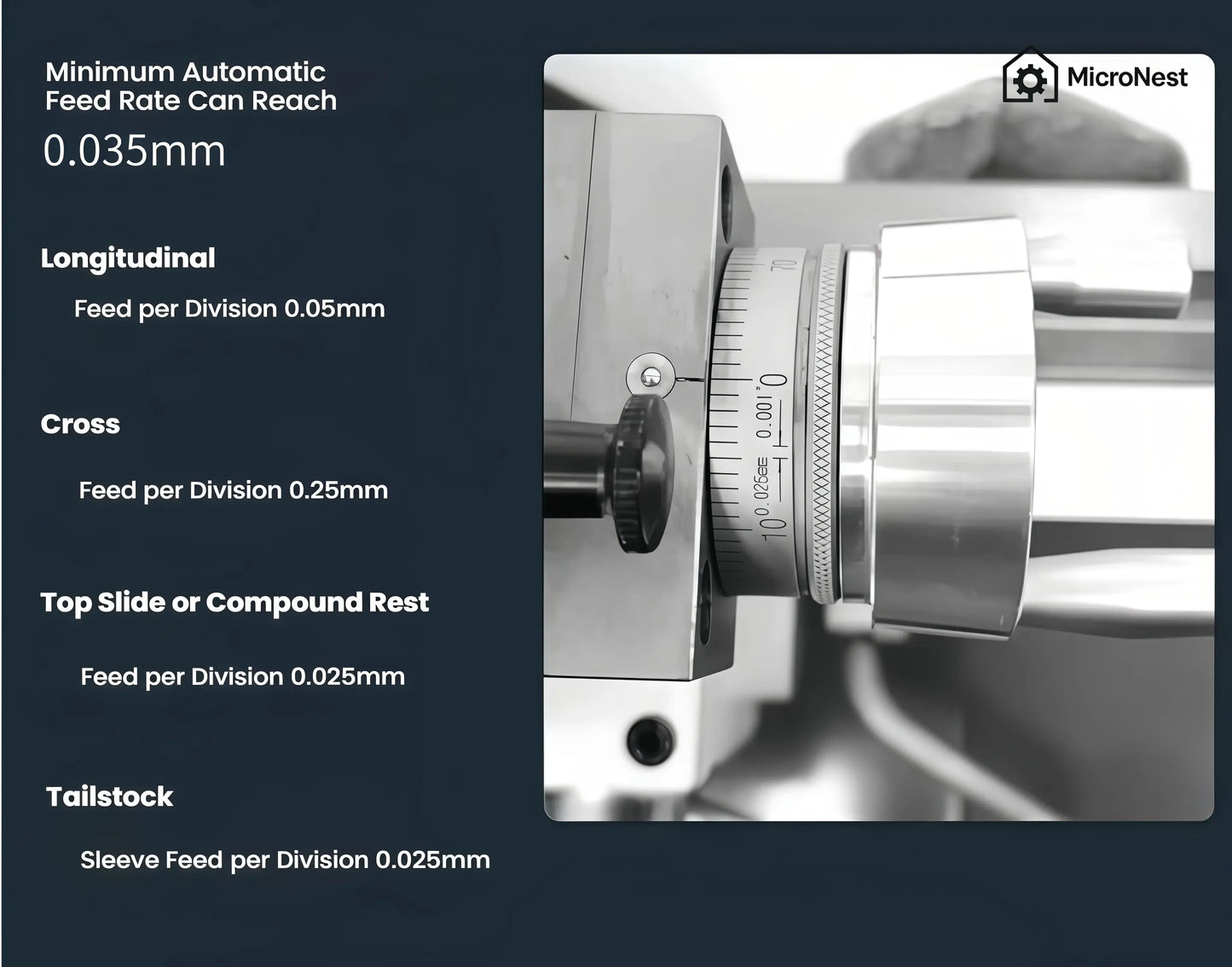

Bidirectional feed with auto-feeding
Automatically feeds in both forward and reverse directions for hands-free operation.
Minimum feed distance: 0.035mm.
Key Specifications
Swing over bed:280mm
Max workpiece length:700mm
Swing over carriage:165mm
Spindle bore diameter:26mm
Spindle taper:MT.4#
Tailstock taper:MT.3#
Spindle speed range:80–1600 rpm (12-speed control)
Cross slide travel:145mm
Tool post slide travel:75mm
Tailstock travel:60mm
Longitudinal feed:0.03–0.275 mm/r
Cross feed:0.015–0.137 mm/r
Min feed resolution:0.035mm (auto), 0.025mm (manual)
Thread pitch – metric:0.25–5.0mm (18 types)
Thread pitch – imperial:4–96 TPI (33 types)
Module threads:0.25–2.5π / DP (14 types)
Diametral pitch threads:7–96π / DP (24 types)
Motor:750W, 380V, 50Hz (inverter-controlled)
Net/Gross Weight:408 lbs/459 lbs (185kg / 208kg)
Product dimensions:1270 × 570 × 420mm
Packaging dimensions:1400 × 610 × 670mm
Core Features
✅ Spindle supported by high-precision tapered roller bearings for stable, low-vibration performance
✅ Inverter-controlled 750W motor extends motor life and ensures smooth speed regulation
✅ Double-V hardened guideway structure for high wear resistance and consistent accuracy
✅ Emergency stop switch and chuck guard interlock for enhanced safety
✅ High-speed thread cutting with no gear changes required – saves setup time
✅ Forward/reverse auto feed supports both internal and external threading, plus fine finishing
Standard Accessories
MT3 & MT4 center sleeves
Chuck reverse lever
Oil can, hex keys, open-end wrench
Chuck wrench
Full accessory toolkit box
Ideal For
Small workshop metal part manufacturing
Vocational/technical school training
Scientific R&D institutions
DIYers working with stainless steel, iron, aluminum, copper, wood, and nylon
Shipping Reminder
This lathe weighs approximately 408 lbs (185kg). Please use a forklift or hoist for safe unloading.
Note:
Due to the weight and volume, air shipping is extremely expensive and not recommended.
Sea freight is the preferred method, but please allow extended delivery times (typically 15–20 days depending on destination country).
If you need a faster option, please contact us before placing an order.
Origin: China
