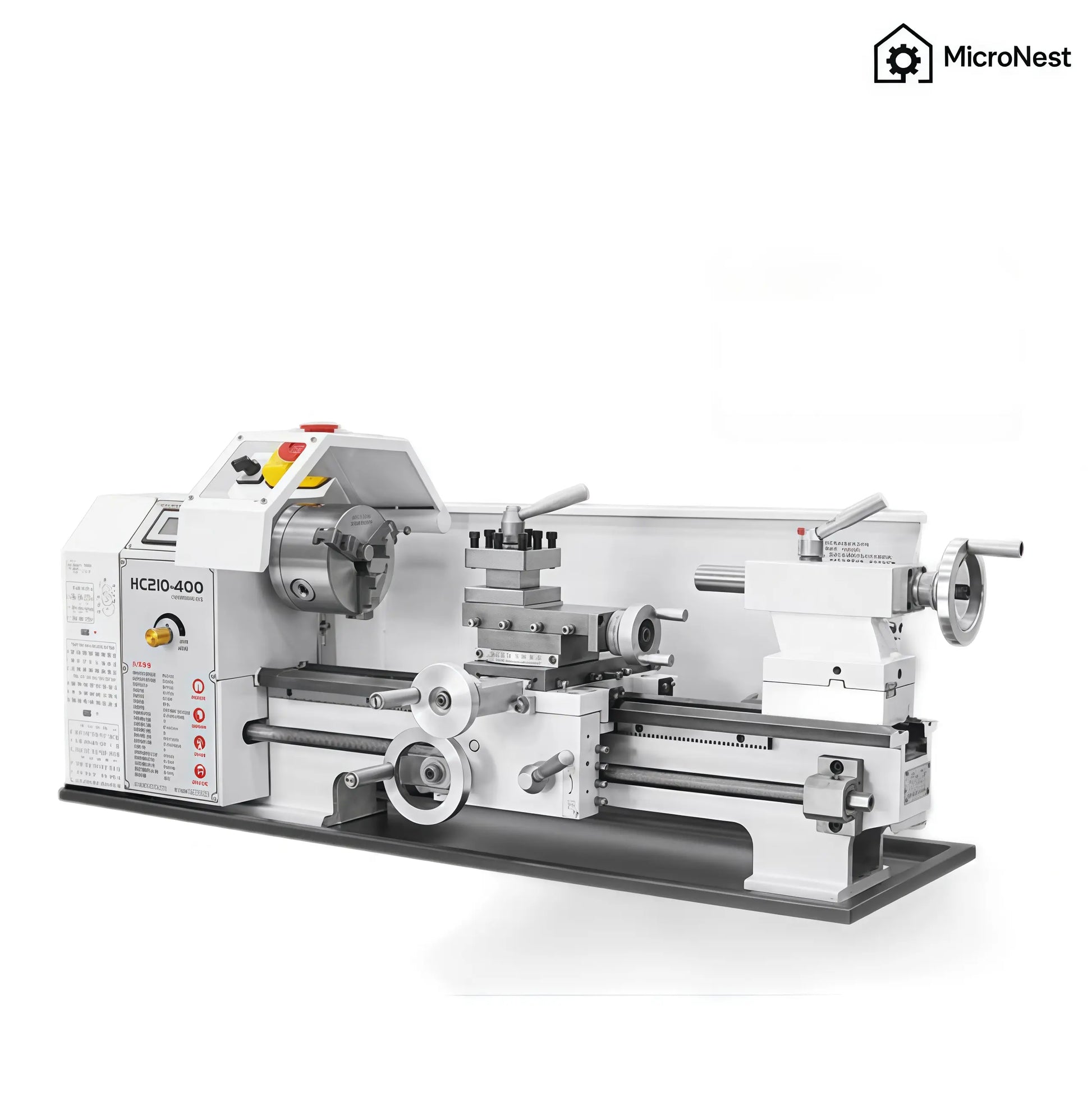

HC210-400 Mini Metal Lathe - Household & Workshop - MicroNest

Short Description:

A compact yet powerful bench lathe designed for high-precision metal and wood part machining. Featuring a brushless 750W motor, hardened dual-V guideways, and 14 thread pitch options, the HC210-400 is ideal for home users, small workshops, and academic institutions.

Key Specifications:

Swing over bed: 8.3 inch (210mm)

Swing over cross slide: 5.5 inch (140mm)

Distance between centers: 14.6 inch (370mm)

Spindle bore: 0.83 inch (21mm)

Spindle taper: MT3

Chuck diameter: 4 inch (100mm), upgradeable to 5 inch (125mm)

Tailstock taper: MT3

Motor: 750W DC brushless motor

Speed range: 50–2500 RPM (stepless variable speed)

Longitudinal travel (tool post): 3.3 inch (85mm)

Cross slide travel: 3.1 inch (80mm)

Tailstock travel: 2.4 inch (60mm)

Thread pitch – metric: 0.3–3mm (14 types)

Thread pitch – imperial: 12–51 TPI (20 types)

Feed rate: as low as 0.089mm/r

Manual feed accuracy: 0.025mm (cross slide, top slide, tailstock)

Package dimensions: 35.6 × 17.9 × 17.7 inch (905 × 455 × 450mm)

Net/Gross weight: 165 lbs / 176 lbs (75kg / 80kg)

Core Features:

✅ High-torque 750W brushless DC motor for smooth, quiet operation and extended motor life

✅ Double-V hardened guideways for consistent precision and wear resistance

✅ Precision-ground spindle with runout under 0.01mm

✅ Emergency stop switch + chuck guard interlock for operator safety

✅ 14 preset metric thread pitches and 20 imperial thread options

✅ Heavy-duty compound rest with 4-position tool post (fits 4 standard cutting tools)

✅ Turret rotates 360° for flexible cutting angles

✅ Fine feed dials: cross slide 0.025mm, top slide 0.025mm, tailstock 0.025mm

Applications:

Ideal for stainless steel, mild steel, aluminum, brass, nylon, and wood turning. Widely used by:

Hobbyists and home DIYers

Vocational schools and engineering labs

Mini part production workshops

Included Accessories:

1 × MT3 center sleeve

1 × Chuck reversing lever

1 × Oil can

Hex keys and open-end wrench set

1 × Chuck wrench

1 × Full accessory toolkit

Shipping Reminder:

This lathe weighs 165 lbs (75kg). Please ensure you have access to a forklift or hoist for safe unloading. Shipping box dimensions: 35.6 × 17.9 × 17.7 inch (905 × 455 × 450mm).

Note:

Due to the weight and volume, air shipping is extremely expensive and not recommended.

Sea freight is the preferred method, but please allow extended delivery times (typically 15–20 days depending on destination country).

If you need a faster option, please contact us before placing an order.

Origin: China
