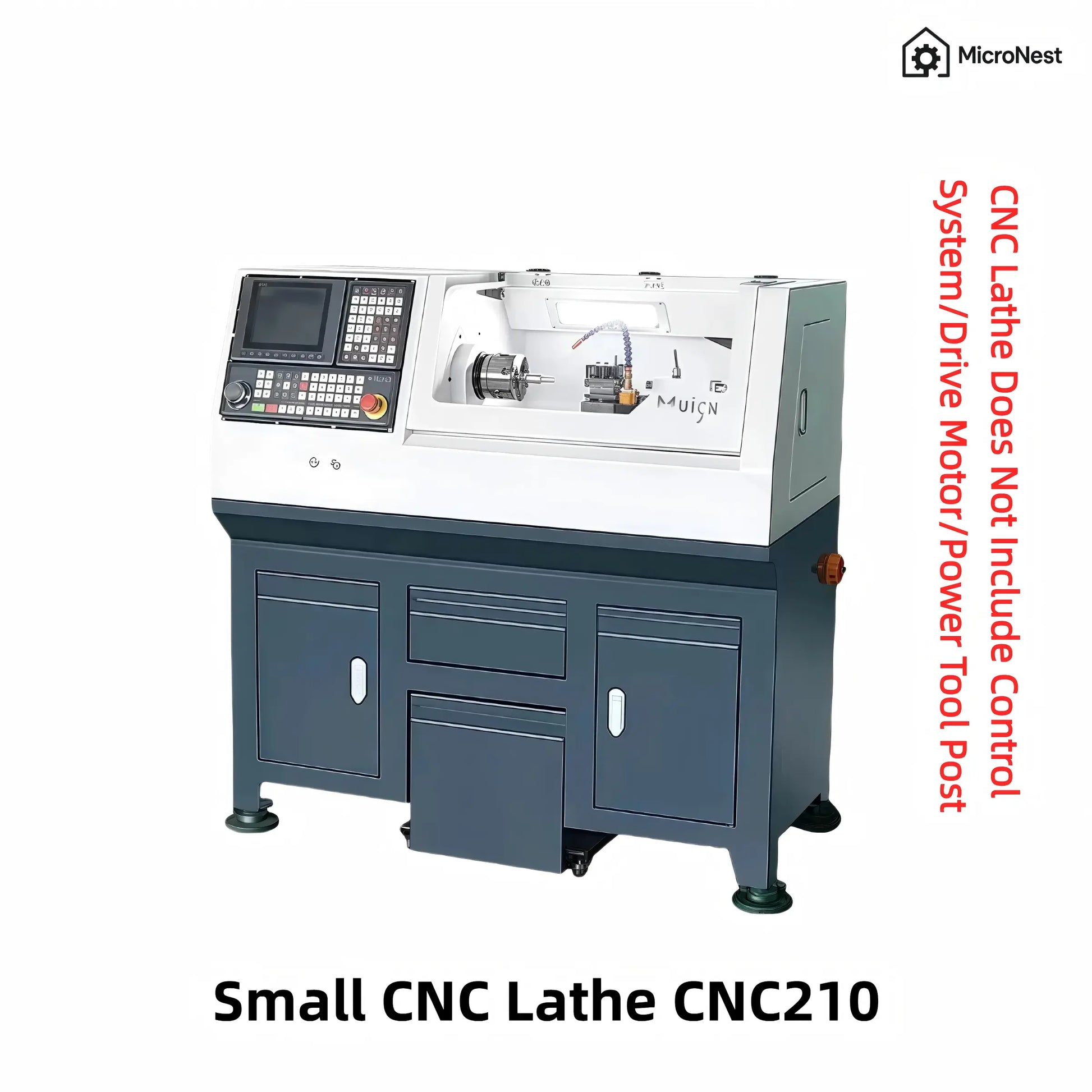

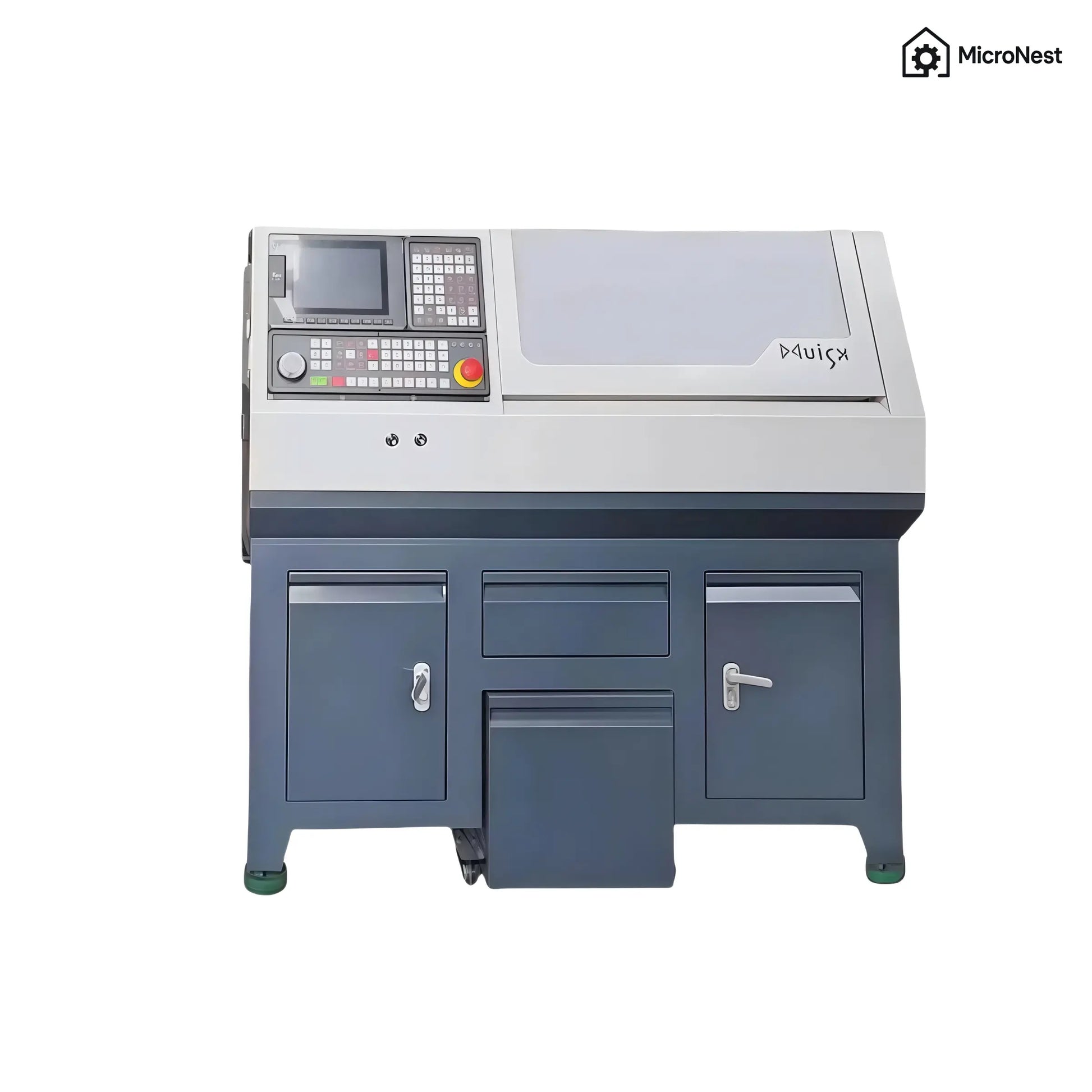

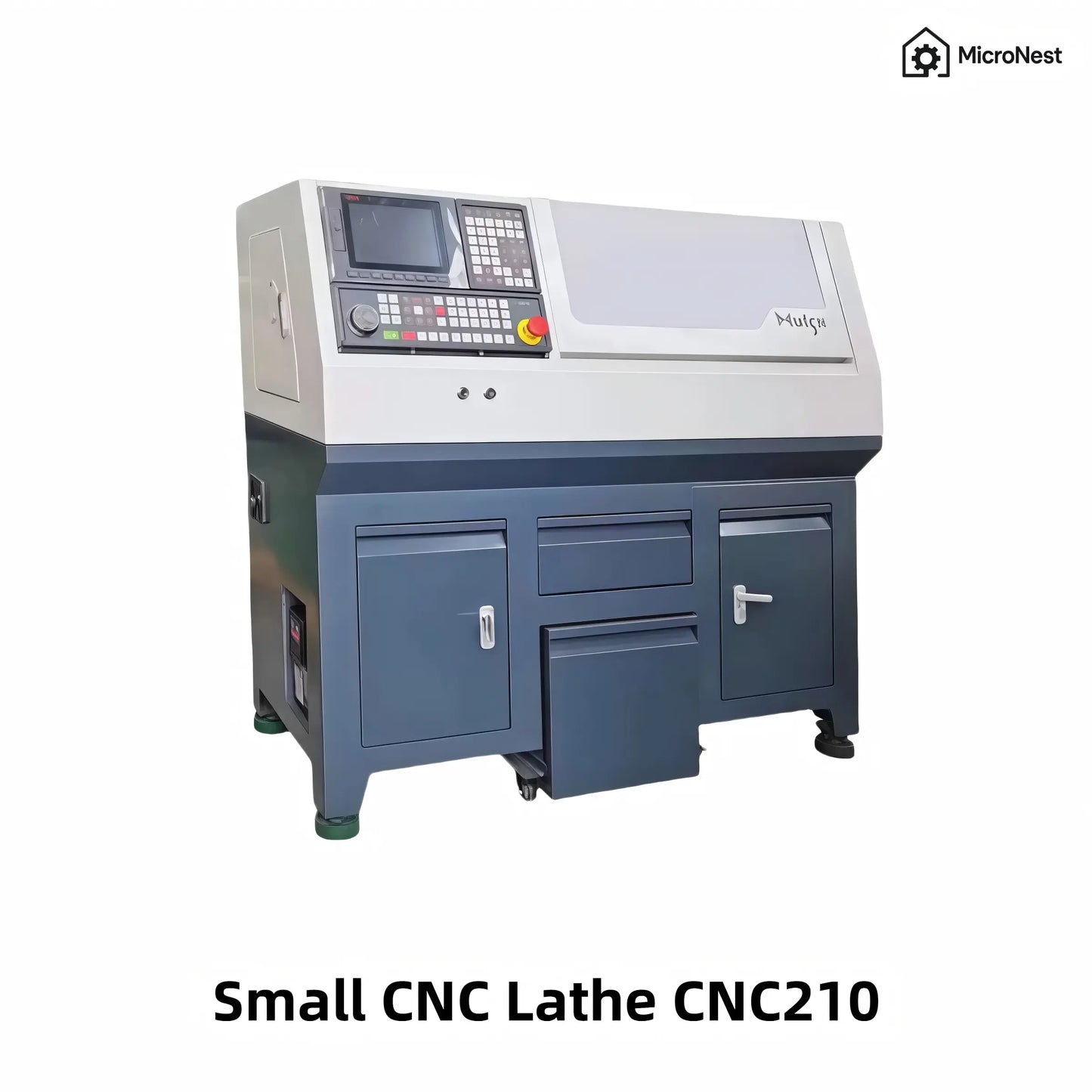

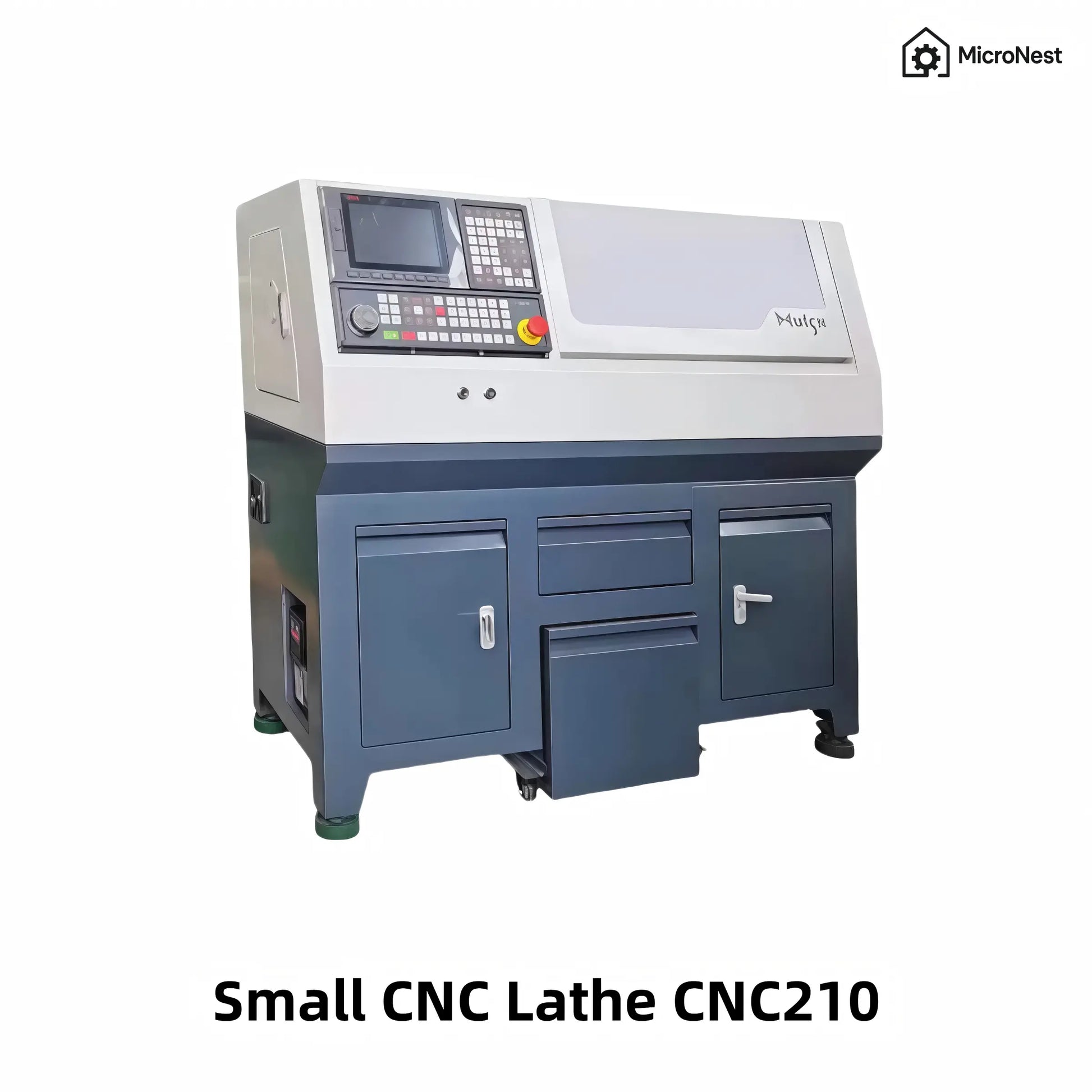

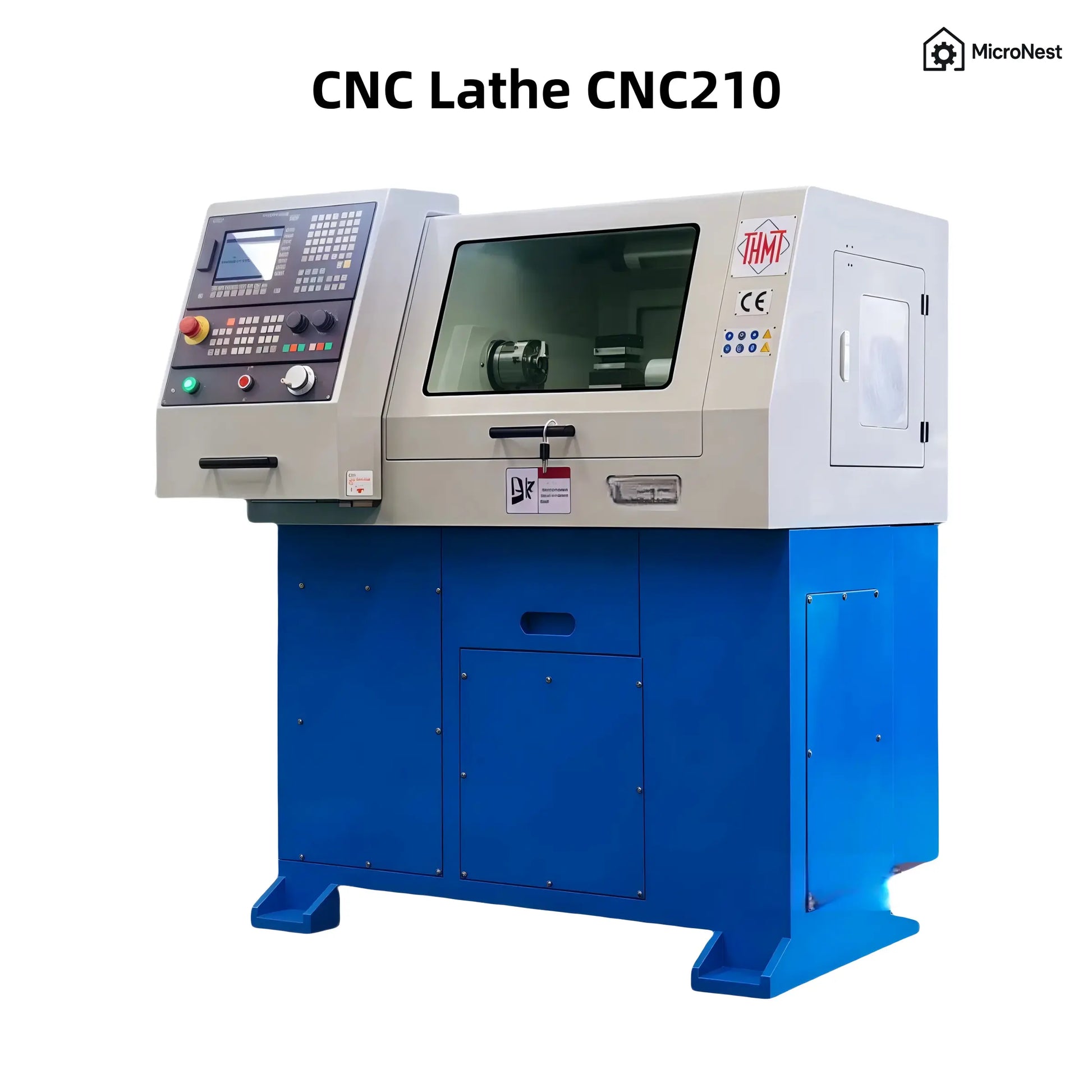

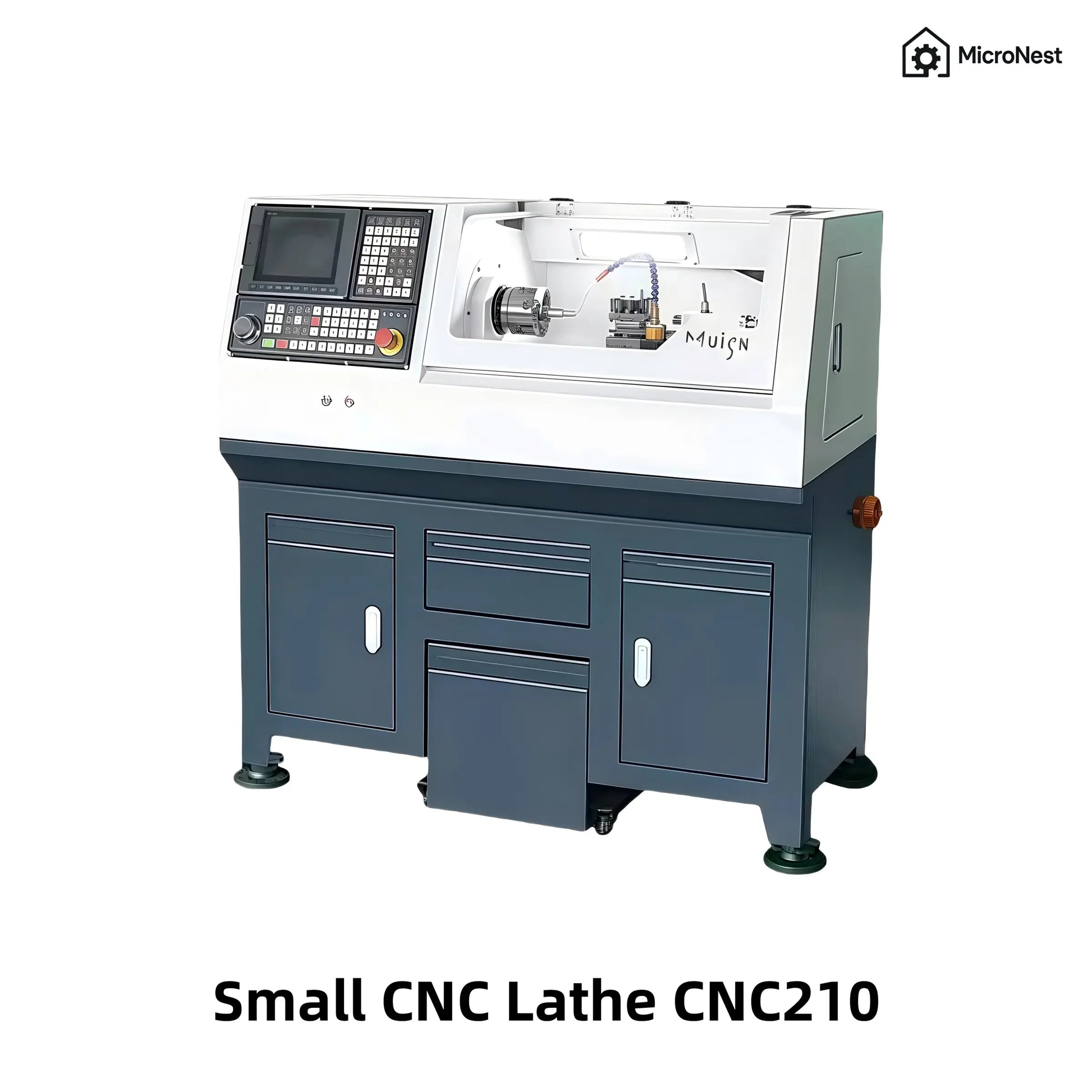

CNC210 Mini CNC Lathe - Compact Precision Metal Turning Machine by MicroNest

🛠️ Compact. Precise. Reliable. Your entry-level CNC lathe for teaching and small batch turning applications.

Why Choose the CNC210 Mini CNC Lathe?

The CNC210 is a compact precision lathe ideal for teaching, training labs, and small part manufacturing. Equipped with a full enclosure, lighting, cooling system, and waste collection drawer, it brings industrial features to a benchtop machine.

This model features a 26mm spindle bore, 250mm turning length, and 100mm chuck. It supports manual or automatic control systems such as GSK 928TDL, 980TDL, or Siemens 808DA.

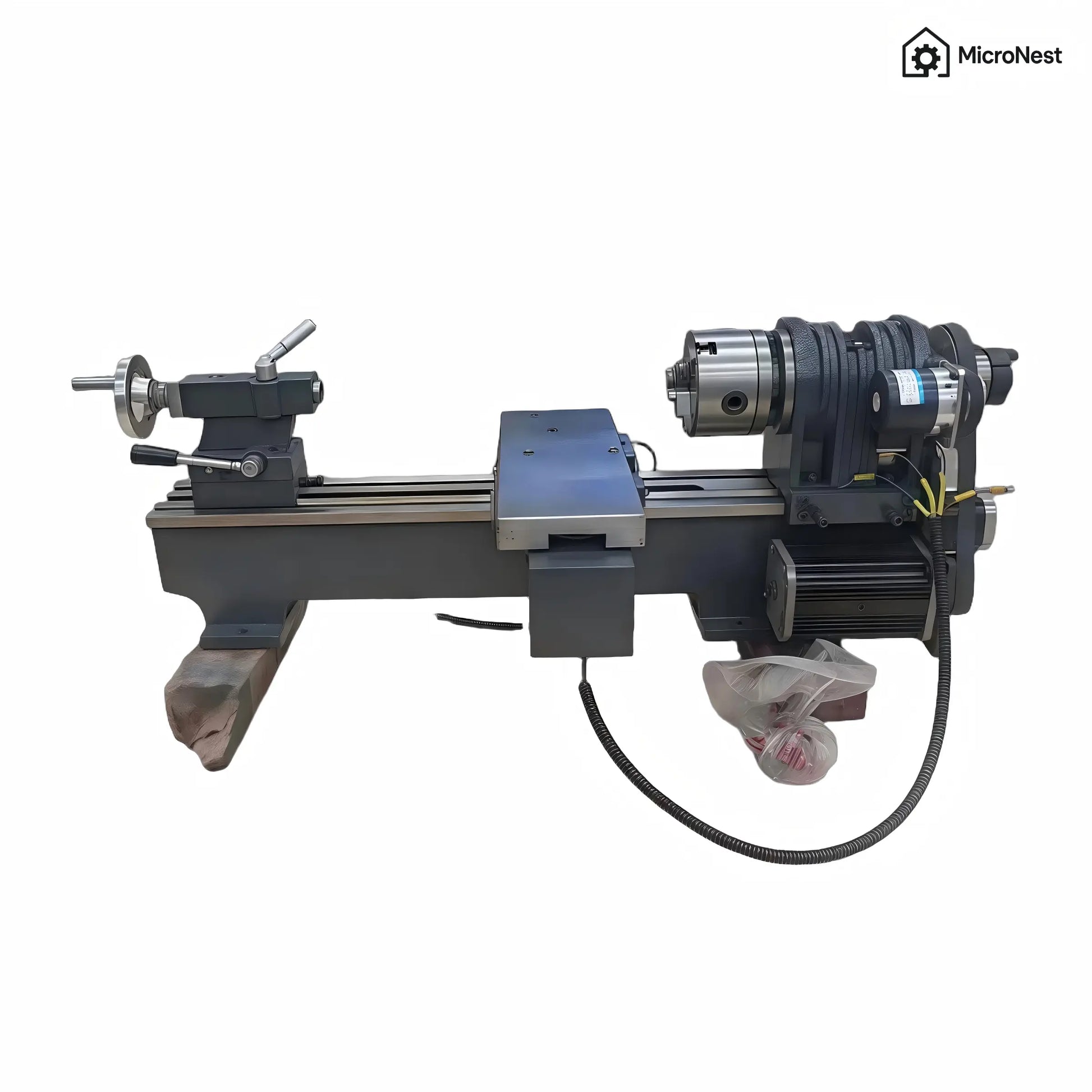

Engineered with a rigid cast base, linear guides, and a high-performance MT4 spindle, it delivers accuracy and stability in every cut.

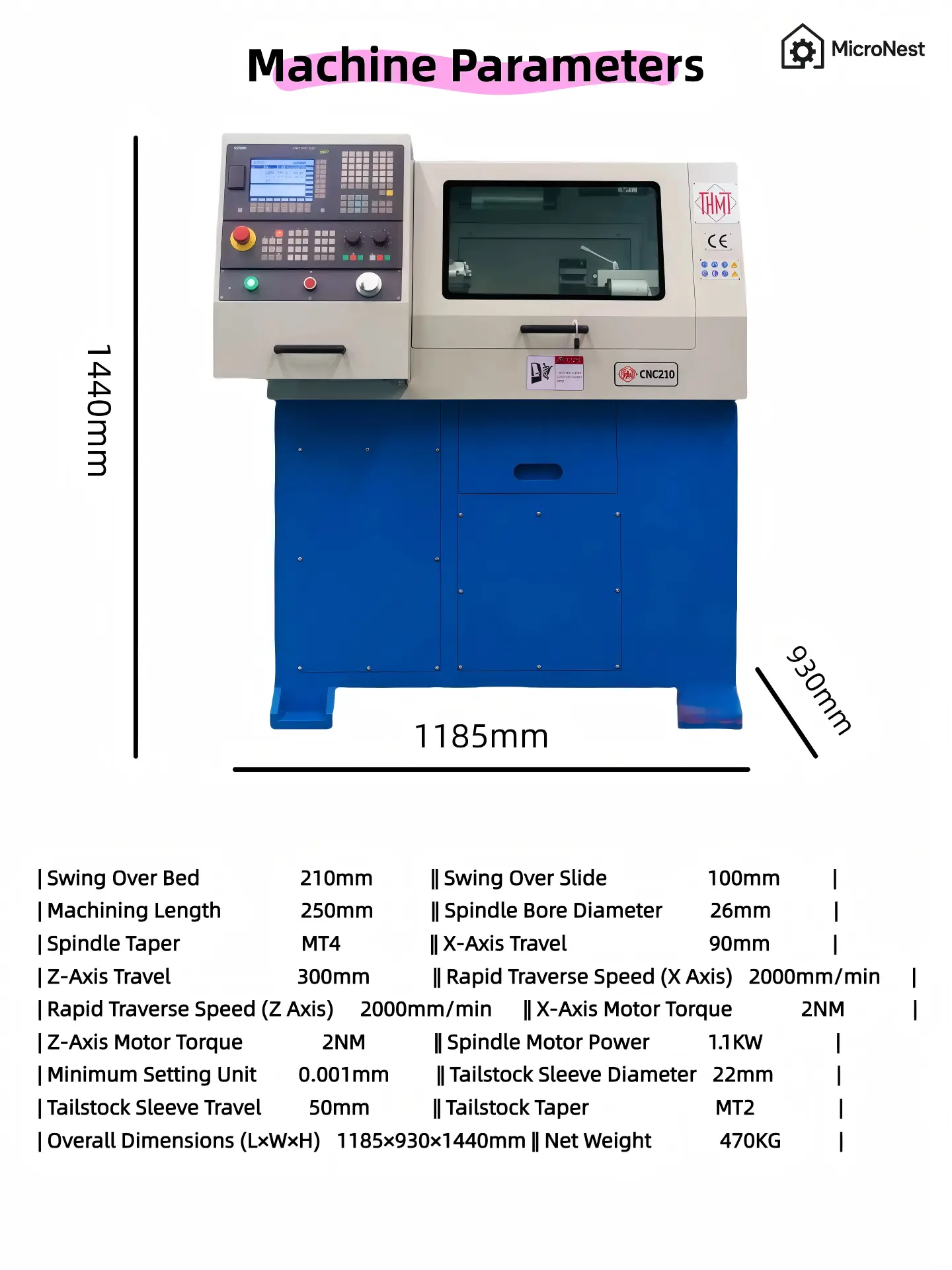

🔧 Key Specifications

• Max Swing Over Bed: 210mm

• Max Swing Over Cross Slide: 100mm

• Max Turning Length: 250mm

• Spindle Bore: 26mm

• Spindle Taper: MT4

• X Axis Travel: 90mm

• Z Axis Travel: 300mm

• Rapid Traverse (X/Z): 2000 mm/min

• X Axis Motor Torque: 2NM

• Z Axis Motor Torque: 2NM

• Main Spindle Motor Power: 1.1kW

• Min Increment Unit: 0.001mm

• Tailstock Quill Diameter: 22mm

• Tailstock Quill Travel: 50mm

• Tailstock Taper: MT2

• Machine Dimensions: 1185 × 930 × 1440mm

• Net Weight: 470kg

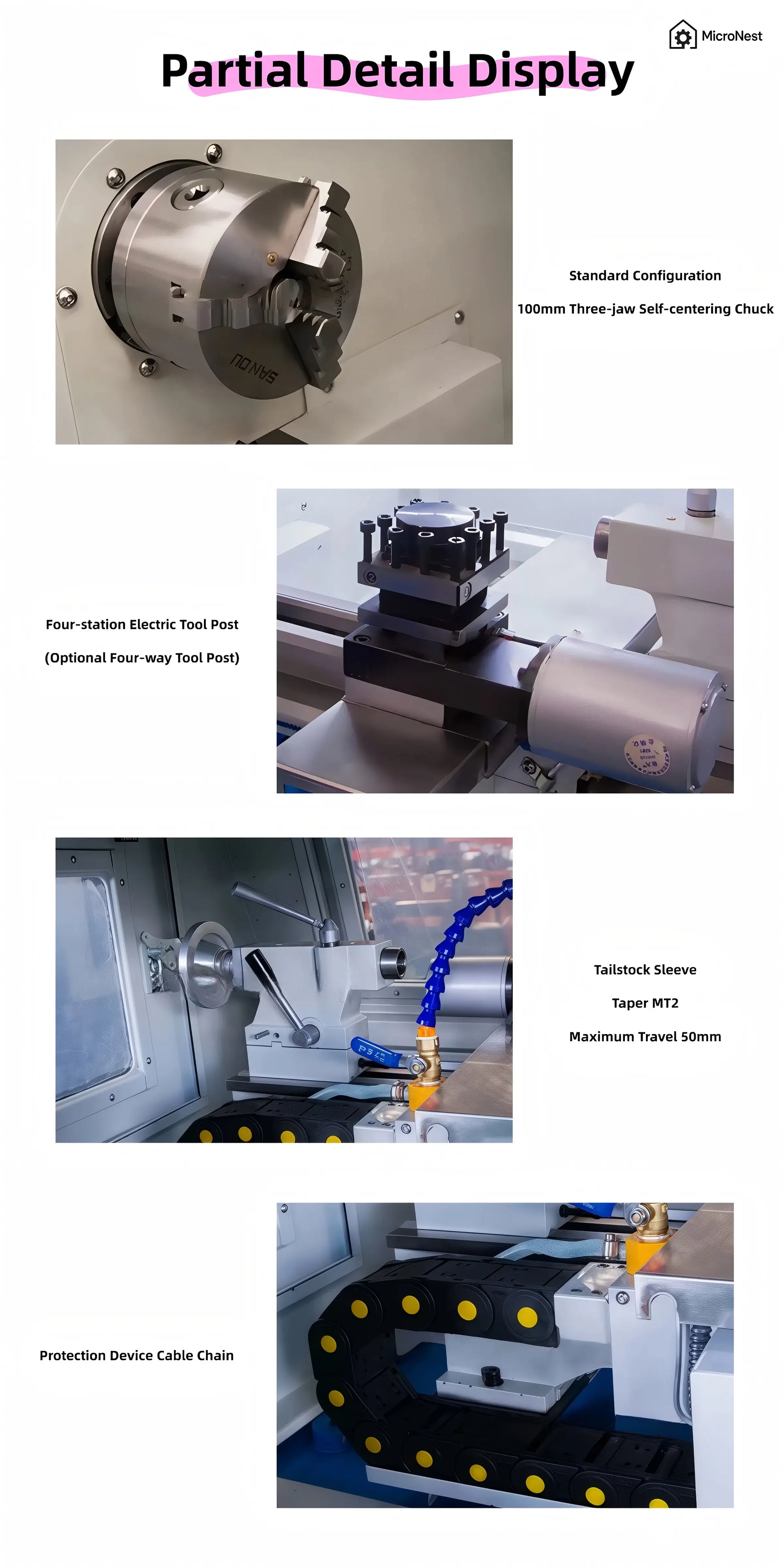

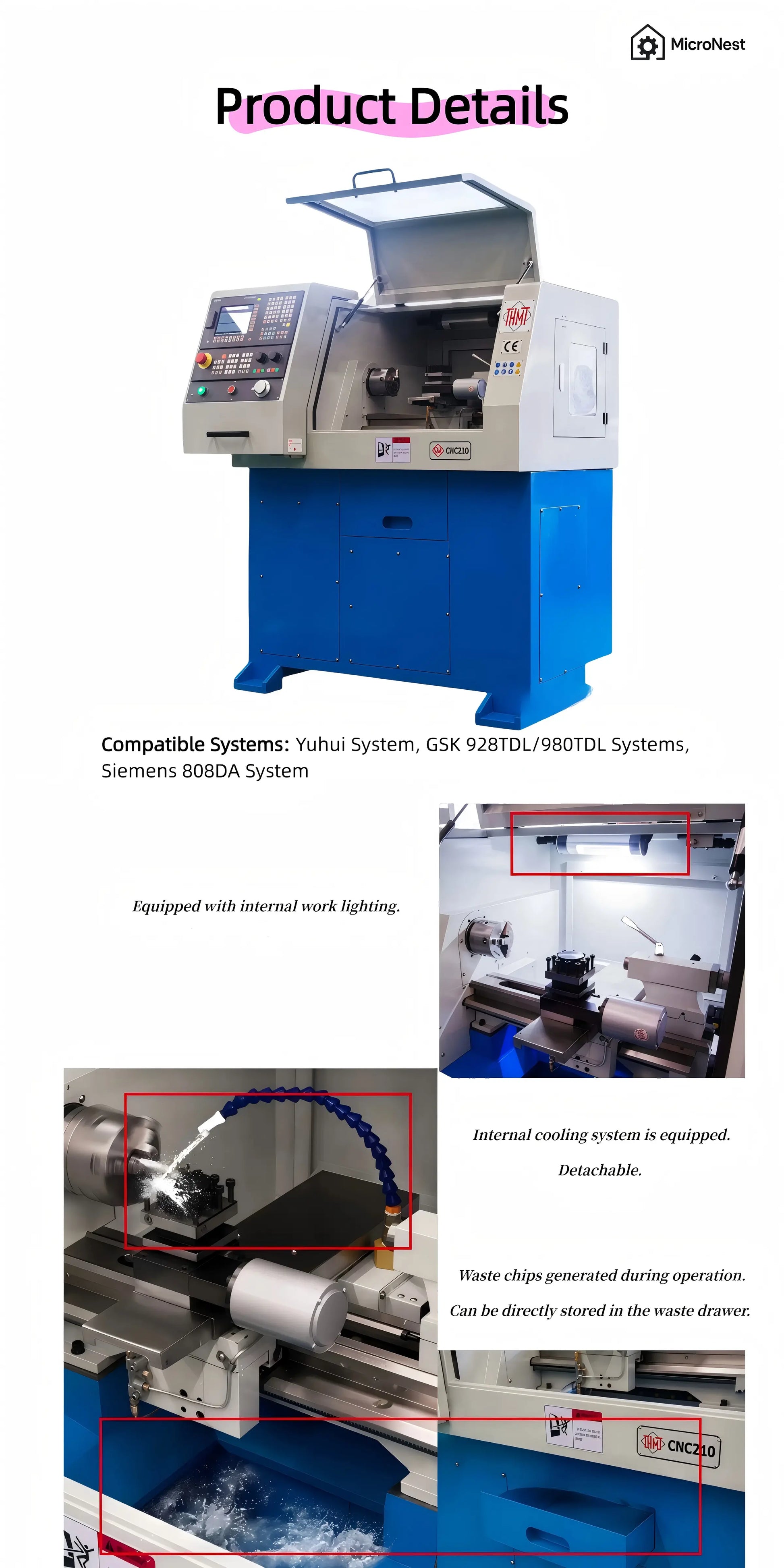

🌟 Core Features

• Fully enclosed structure with LED work light

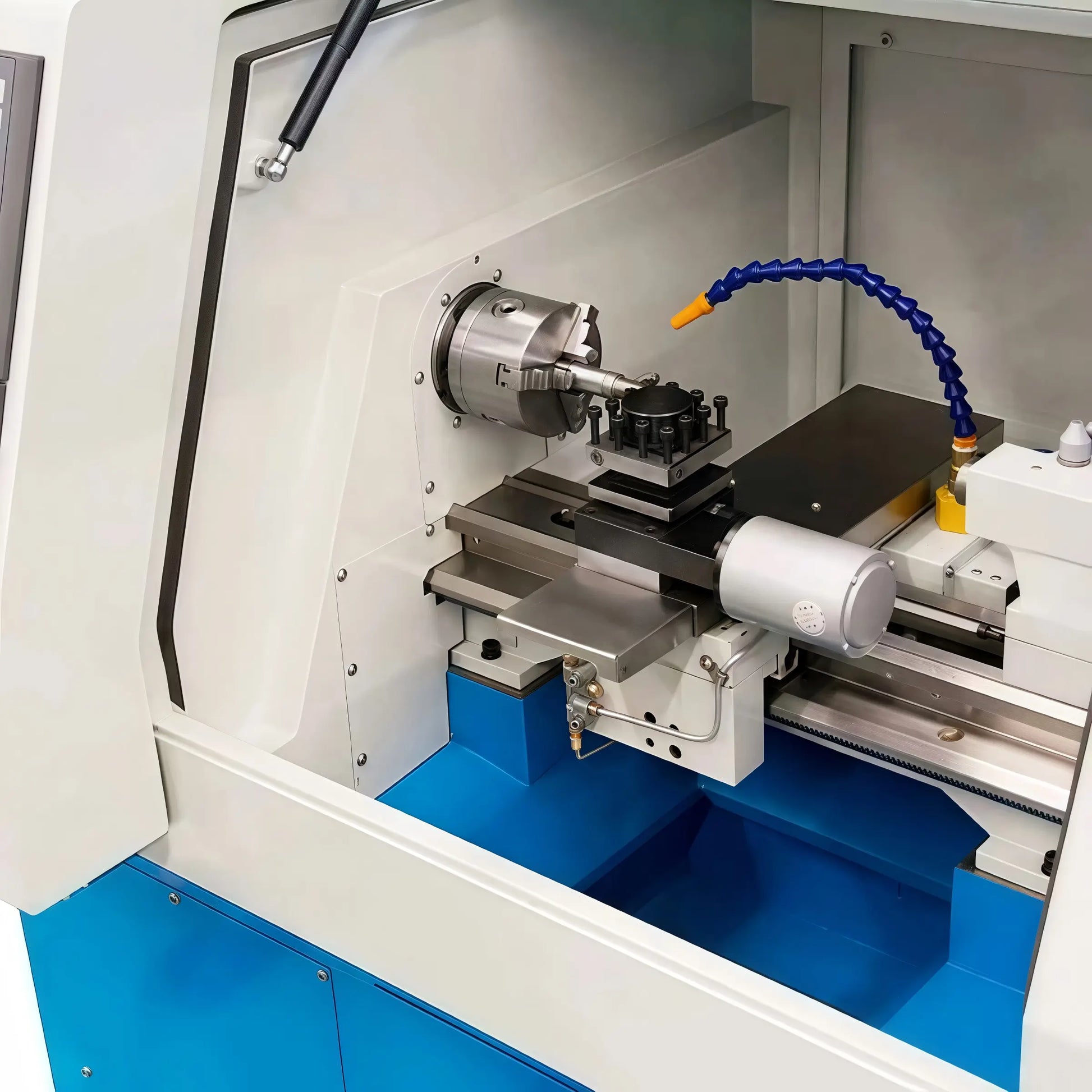

• Integrated cooling system (removable nozzle)

• Waste chip drawer for easy cleaning

• Three-jaw chuck (standard 100mm)

• Optional 4-position electric tool post

• Tailstock with MT2 taper, 50mm max travel

• Cable drag chain for enhanced protection

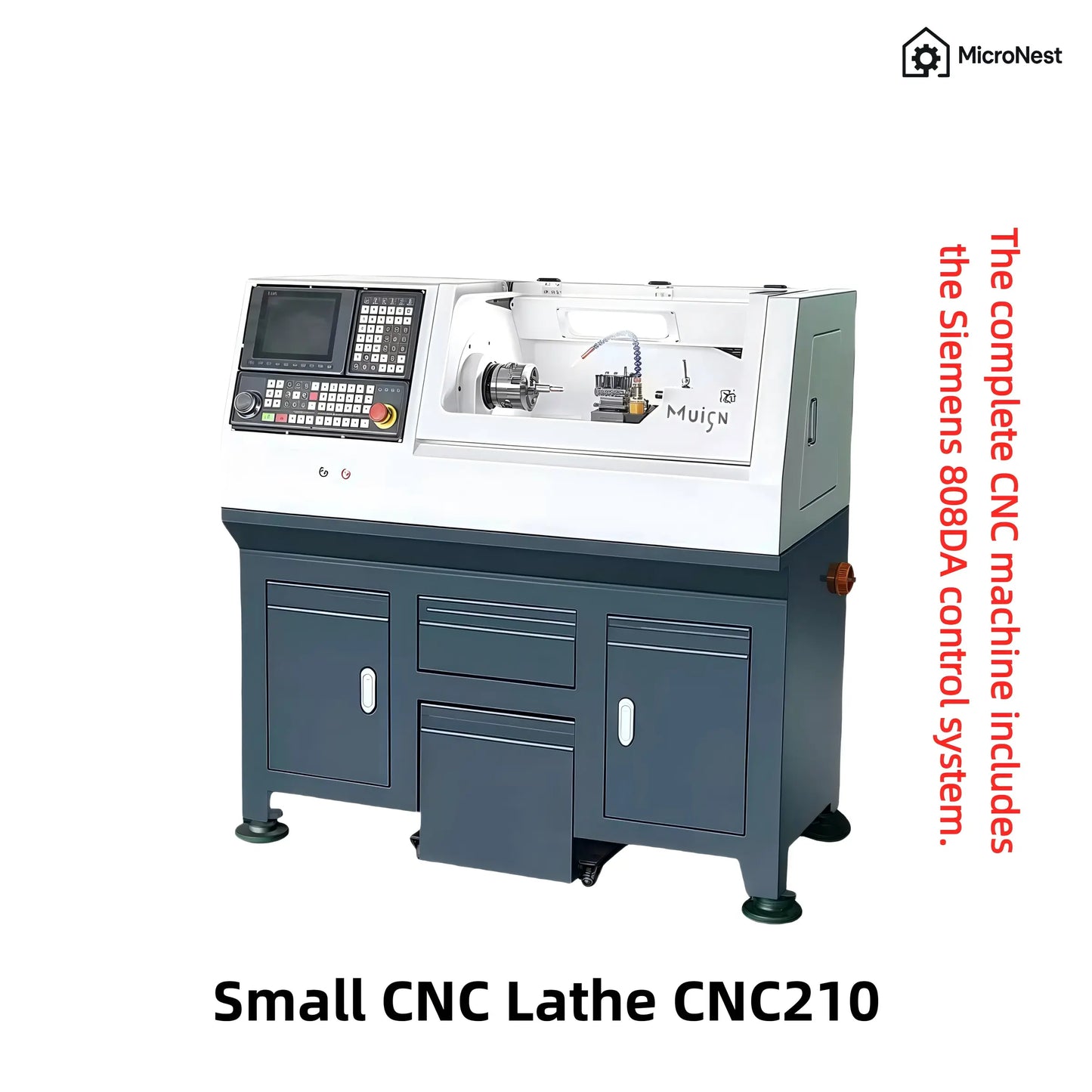

• Supported CNC Systems: GSK 928TDL/980TDL, Siemens 808DA, or YuHui control

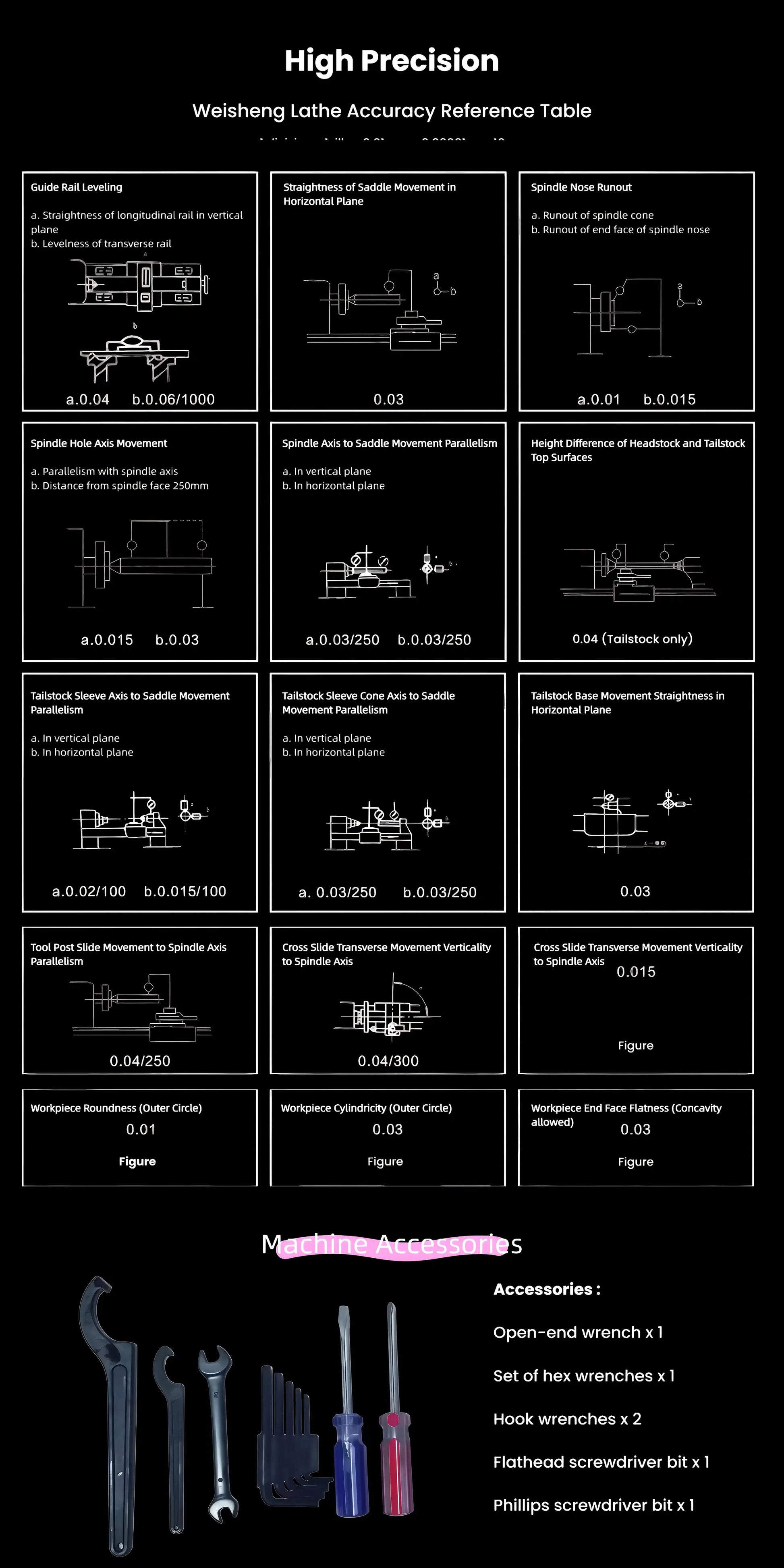

📦 Standard Accessories

• Wrench kit (open-end, hex, hook)

• Phillips and flathead screwdrivers

• Coolant system

• Lighting and chip tray

• Chuck key and manual

• Full documentation and basic tools included

✅ Ideal For

• Vocational schools and CNC training labs

• DIY and technical education programs

• Hobbyist and small-batch parts production

• Lightweight turning of aluminum, steel, brass, plastics, and wood
